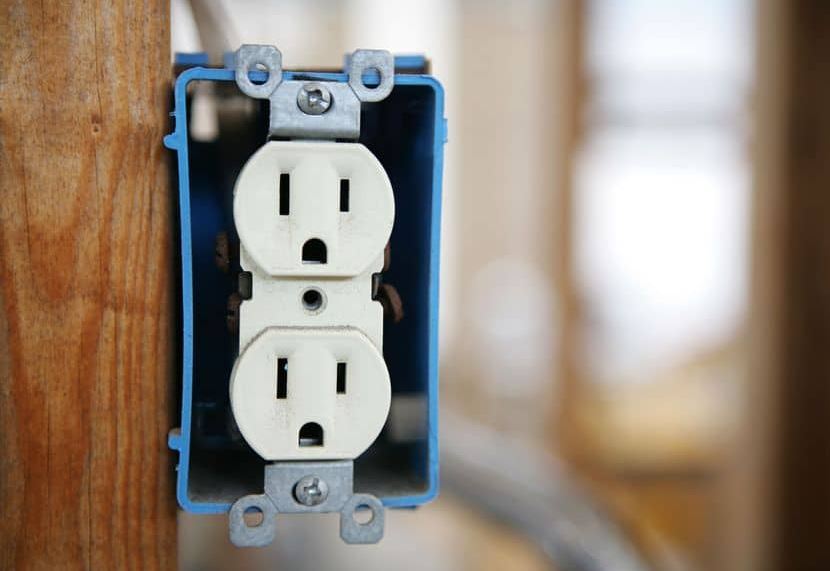

GFI Vs. GFCI Outlets: What is the Difference?

Implementing GFCI outlets in every American home could curtail over 300 fatalities annually. This guide delves into the role of GFCI outlets, clarifies common terminologies, and underscores the differences between GFCI breakers and outlets. It outlines mandated usage locations, details required cabling, and offers practical insights from real-world experiences to stress the importance of GFCI outlets in saving lives. Given the increasing reliance on electrical devices in households, understanding and adhering to proper installation standards is vital. What might happen if these standards are neglected? By meticulously exploring these facets, we emphasize GFCI outlets' integral role in modern electrical safety.

Catalog

Ground Fault Circuit Interrupter (GFCI) outlets are designed to shield individuals from electrical shocks. They detect discrepancies between the current flowing into and out of a circuit. Upon detecting an imbalance, the GFCI instantly halts electrical flow to prevent harm. This rapid response, occurring within milliseconds, can significantly reduce the risk of severe injuries or fatalities. Are there instances where such milliseconds could make a difference between life and death?

GFCI outlets have proven invaluable in environments with high water exposure, such as bathrooms and kitchens. By reducing the risk of electric shock, they add a crucial layer of safety that enhances other electrical safety protocols. Can we quantify the reduction in risk these outlets provide in such high-exposure environments?

Ensuring clarity in terms like "GFCI," "breaker," and "outlet" is integral to grasping electrical safety. A GFCI breaker serves a function similar to a GFCI outlet but protects an entire circuit by being installed directly in the electrical panel rather than safeguarding a single outlet. In contexts where multiple electrical devices converge, such distinctions can enhance the precision and safety of installations. Matching the right safety device to its application optimizes protection standards. How crucial is this precision in ensuring electrical safety in complex configurations?

GFCI breakers protect entire circuits, while GFCI outlets safeguard specific points of use. This distinction is vital for selecting the appropriate installation strategy to ensure comprehensive protection. Observations from field experiences suggest that GFCI outlets are ideal for localized protection, while GFCI breakers offer broader coverage, suitable for larger areas or circuits with multiple outlets. This practical knowledge can guide effective decision-making in various installation settings.

Electrical codes require the installation of GFCI outlets in high-risk areas such as bathrooms, kitchens, basements, and outdoor spaces. Adhering to these guidelines ensures compliance and maximizes safety. Inspection and compliance reports frequently highlight reduced incidents of electrical accidents in homes that follow these regulations. Implementing GFCI outlets in specified locations enhances both safety and reliability. Proper cable selection is pivotal for the effective operation of GFCI outlets. Using wires that meet the necessary gauge and insulation standards ensures optimal performance and safety. Adhering to best practices in wiring and installation bolsters the role of GFCI outlets in preventing electrical hazards. The use of appropriate cables not only adheres to safety codes but also promotes durability and efficiency in electrical systems.

What is a GFCI Outlet?

A Ground Fault Circuit Interrupter (GFCI) outlet is a specialized electrical outlet engineered to prevent electric shocks by swiftly cutting off electrical power upon detecting an imbalance between the incoming and outgoing current. This discrepancy, referred to as a ground fault, occurs when the electrical current strays from its designated path and unintentionally seeks an unauthorized route to the ground, presenting a significant hazard.

How does the GFCI mechanism detect such imbalances, and why is this crucial? The GFCI outlet employs sophisticated sensor technology that continuously monitors the electrical circuit for these irregularities. When the system identifies a deviation, it immediately halts the electric supply, thereby providing a layer of protection that conventional outlets cannot offer.

Is there a specific design feature that differentiates a GFCI outlet visually from regular outlets? Yes, GFCI outlets are easily recognizable by the prominent red reset button on their faceplate. This feature serves not only for functionality but also adds a layer of user trust and reliability in the electrical infrastructure. Environments prone to moisture, such as bathrooms and kitchens, greatly benefit from the installation of GFCI outlets due to the increased risk of electrical accidents in such areas. This protective measure not only enhances safety but also instills confidence in both residential and commercial applications.

GFCI vs. GFI

GFCI (Ground Fault Circuit Interrupter) and GFI (Ground Fault Interrupter) actually denote the same device. Although both terms are used interchangeably, GFCI tends to be more prevalent. An important question arises here: Why is the term "GFCI" more commonly used than "GFI"? The answer lies in its adoption and standardization within industry practices. Note that GFCI/GFI is distinct from AFCI (Arc-Fault Circuit Interrupter), which serves the purpose of preventing fires caused by arcing faults rather than mitigating ground faults.

The role of GFCI/GFI in electrical safety is profound and multi-faceted. These devices are engineered to safeguard individuals from electrical shock by rapidly cutting off power when a ground fault is detected. What exactly constitutes a ground fault? Ground faults manifest when current strays from its intended circuit pathway to an unintended conductive object, potentially leading to hazardous situations. By swiftly interrupting the circuit, GFCIs significantly diminish the risk of severe injuries or fatalities.

Recent advancements in GFCI technology have bolstered their reliability and functionality. Modern GFCIs have the capability to self-test at regular intervals to ensure they remain in proper working condition, adding an extra layer of safety. Furthermore, these devices are increasingly being integrated with smart home systems, which allow for remote monitoring and control. The widespread deployment of these devices in residences, workplaces, and public venues is a strong indicator of their efficiency in maintaining electrical safety.

The intricacies of installing GFCIs necessitate adherence to precise protocols to maximize safety and functionality. They are predominantly installed in areas where electricity and water are in close proximity, such as bathrooms, kitchens, and outdoor spaces. Professional electricians often stress the importance of routinely testing these devices by pressing the "test" and "reset" buttons to confirm their proper operation. Such diligence underscores the ongoing necessity of regular maintenance and awareness in the prevention of electrical hazards.

AFCI (Arc-Fault Circuit Interrupter) deals with a different type of electrical issue compared to GFCI/GFI. AFCIs are designed to detect and interrupt arcing faults, which can precipitate electrical fires if left unaddressed. While GFCIs provide protection against ground faults, AFCIs are aimed at preventing arc-induced fires. It's not uncommon to find both devices employed together in contemporary electrical systems, each contributing to a comprehensive suite of electrical safety measures.

The blending of both AFCI and GFCI technologies within modern infrastructure epitomizes a holistic strategy towards electrical safety. This combined measure not only complies with rigorous safety standards but also aligns with evolving building codes and regulations. For example, new residential constructions frequently mandate the installation of both types of interrupters across various circuit locations to ensure heightened protection against a broad spectrum of electrical hazards.

GFCI Breaker vs. GFCI Outlet

Deciding between a GFCI (Ground Fault Circuit Interrupter) breaker and a GFCI outlet necessitates a nuanced understanding of various factors, including the extent of protection required, the specific application, and considerations during installation and use. Both GFCI breakers and GFCI outlets are engineered to cut off power when they detect current imbalances, thereby preventing electric shock hazards. But have you ever wondered why the scale of their protection differs so significantly? This can be attributed to their distinct points of installation and operational dynamics.

GFCI breakers are installed in the electrical panel. They can safeguard an entire circuit, offering broad protection for multiple outlets and devices connected to that circuit. This comprehensive coverage ensures that any ground fault anywhere on the circuit will trip the breaker, ensuring maximum safety for all connected points. Could this be seen as the ultimate protective umbrella for your entire electrical system?

Conversely, GFCI outlets provide localized protection at specific points of use. They are typically installed in areas with higher risks of electrical hazards, such as kitchens, bathrooms, and outdoor spaces. A single GFCI outlet protects only the devices and outlets downstream from it. This raises the question: Is it more effective to target individual high-risk areas with focused protection? When it comes to practical decision-making, cost and convenience often come to the forefront. GFCI outlets are generally more cost-effective for single or limited-point installations. You'll find homeowners favor this solution for retrofitting older homes or adding protection to particular areas.

The convenience of resetting a tripped GFCI outlet right at the point of use rather than a distant breaker panel can be significant. This is especially true in larger residences or commercial buildings where the electrical panel may be located far from the protected outlets. Have you ever thought about the time saved by not having to trek to the breaker panel each time an outlet trips?

Professional electricians often advise against installing both a GFCI outlet and a GFCI breaker on the same line. This redundancy can cause nuisance tripping and difficulty in tracing faults. Why risk complicating your electrical system with redundant safety measures when a single mechanism can serve effectively? Many practitioners have found that in environments where multiple users may inadvertently overload circuits, GFCI outlets provide a clear and immediate point of intervention. This has been particularly useful in commercial kitchens and workshops where the workflow cannot afford frequent trips to a distant breaker panel. Isn't it fascinating how the location of a protective mechanism can significantly influence workflow efficiency in busy settings?

Requirements for GFCI Outlets

In the U.S., GFCI outlets must adhere to the strict guidelines set forth by the National Electric Code (NEC). These outlets play a crucial role in ensuring safety in moisture-prone environments. This spans across residential, commercial, and public settings. The specific locations that mandate the installation of GFCI outlets include:

• Bathrooms

• Kitchens

• Garages

• Basements

• Outdoor areas

Additionally, any area within close proximity to sinks must also incorporate GFCI protection. Why is GFCI protection so prevalent in such diverse locations? In areas such as bathrooms and kitchens, where water and electrical appliances frequently interact, the risk of electrical shock is significantly heightened. Similarly, commercial establishments with analogous setups, like restaurant kitchens and public restrooms, require GFCI outlets to protect staff and patrons alike. In garages and basements, moisture accumulation is common, and GFCI outlets mitigate electrical hazards. Outdoor outlets, exposed to the elements, also necessitate this protection to ensure safety during adverse weather conditions.

Monthly testing of GFCI outlets is crucial for confirming their operational integrity. This routine check can often be overlooked yet plays a significant role in preventing electrical accidents. Post-installation checks are equally necessary to ensure proper functionality from the outset. After any power outage, inspections must be performed to verify that the GFCI outlets are still functioning as intended. This practice reflects a common precautionary measure found in various safety protocols across industries, aimed at preempting potential failures.

GFCI outlets have a typical lifespan of 15-25 years. However, replacement is recommended every 10-15 years to ensure reliable performance. Electrical components degrade over time, and proactive replacement helps avoid the dangers associated with malfunctioning outlets.This approach is akin to regularly maintaining other critical safety equipment, acknowledging that preemptive action often prevents major incidents. Isn't it interesting how the same principle applies to so many different fields?

Large appliances like refrigerators should not connect to GFCI outlets, as they can trigger unnecessary overloads due to the high power demand. A practical implementation of this guideline is often seen in household wiring strategies, where such appliances are allocated to dedicated circuits. Likewise, emergency lighting systems should steer clear of GFCI protection to avoid inadvertent power disruptions. The rationale here underscores the significance of operational continuity for essential devices and systems. Why are these specific guidelines in place? They reflect a broader commitment to ensuring both practical functionality and overarching safety in everyday environments.

Types and Sizes of Cables for GFCI Outlets and Circuit Breakers

The installation of GFCI outlets does not require specialized cables; standard electrical cables are sufficient. The primary components in these cables include a hot wire, a neutral wire, and a ground wire. But how do we determine the right cable gauge for a circuit? For starters, the selection of the appropriate cable gauge is influenced by the circuit's amperage. Understanding this correlation is essential for proper functionality and safety.

One might wonder, what happens if the wrong gauge is selected? If the cable is not suitable for the amperage, it can overheat, leading to potential hazards.For circuits carrying 15 amps, 14 AWG cables are recommended. Conversely, for circuits with 20 amps, 12 AWG cables are more suitable. This gauge ensures the cable can handle the load without overheating. The most common cable type for GFCI installations is NM-B Romex. Its popularity stems from its cost-effectiveness and ease of installation. However, installation requirements may vary, necessitating other cable types:

• Type MC (Metal Clad) cable: Often used in commercial or industrial settings due to its additional protection.

• UF-B (Underground Feeder) cable: Designed for underground or direct burial installations, offering enhanced durability against environmental factors.

• THHN/THWN-2 or XHHW-XHHW-2 cables: Ideal for industrial setups where cables are placed in conduits. These cables provide superior insulation and heat resistance.

One might ask, what are the real-world implications of improper cable selection? Incorrect choices can result in frequent GFCI tripping or even fire hazards. Personal experiences and anecdotal evidence indicate that following the recommended specifications for cable types and sizes is paramount.

This brings up another question: Could exceeding minimum cable requirements make a difference? Selecting cables that surpass minimum standards, especially in high-stress situations, can significantly enhance the system's reliability and performance.

When implementing GFCI outlets and circuit breakers, paying attention to cable selection affects not only safety but also the installation's longevity. Could choosing the right cables influence the system’s overall performance? Absolutely. Exceeding the baseline requirements can lead to notable improvements in both durability and efficiency.

Therefore, understanding and applying the correct cable type and size tailored to your installation environment can substantially elevate safety and operational efficacy.
