Groups U1 and U1R Batteries - Dimensions, Features, and Recommendations

BCI Group U1 and U1R batteries find extensive use in numerous applications such as medical devices, security systems, wheelchairs, electric scooters, golf carts, lawnmowers, and camping equipment. These batteries mainly consist of Absorbent Glass Mat (AGM) and gel types, as traditional flooded lead-acid batteries are being gradually phased out. However, lithium-ion U1 batteries are entering the market, offering substantially higher capacity and more charge-discharge cycles, albeit at a premium price.

Catalog

Why is there a shift from flooded to AGM and gel batteries? This transition indicates an industry-wide move towards more reliable and maintenance-free power solutions. AGM batteries, for instance, provide enhanced resistance to vibration and reduced self-discharge rates, rendering them optimal for high-drain applications like electric scooters and medical devices. Contrastingly, gel batteries excel in deep-cycle applications, tolerating frequent discharges without significant capacity loss, making them ideal for wheelchairs and golf carts.

Now, let's delve into the performance of these batteries under diverse operational conditions. For example, AGM batteries ensure stable energy supply under variable loads in medical devices, which is crucial for patient safety. On the flip side, lithium-ion U1 batteries, despite their higher initial cost, offer economic advantages over time due to their extended lifespan and low maintenance requirements. This has been substantiated in camping equipment field trials, where the high energy density and lightweight nature of lithium-ion batteries have notably improved the user experience.

From a broader viewpoint, integrating lithium-ion technology marks a forward-thinking approach towards sustainable energy storage solutions. What makes these batteries even more appealing? Their eco-friendly characteristics, combined with advancements in battery management systems (BMS), guarantee that these batteries not only meet current energy needs but also comply with future regulatory standards and efficiency criteria.

In conclusion, although AGM and gel batteries remain favored for their reliability and cost-efficiency, the growing adoption of lithium-ion U1 batteries signifies a transformative change in energy storage paradigms. This shift is expected to spur innovation and improve performance across various applications, setting a crucial direction for future research and development.

Characteristics and Specifications of U1 and U1R Batteries

Dimensions and Terminals

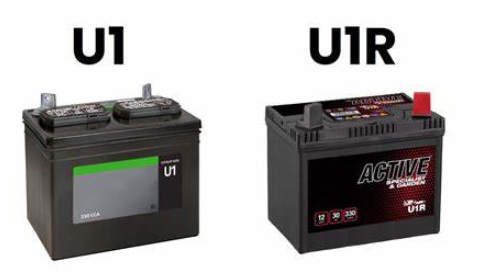

The dimensions of U1 and U1R group batteries are approximately 197 x 132 x 186 millimeters. Curiously, a question arises: why do they differ in terminal placement? The U1's positive terminal is on the left, while the U1R's is on the right.

Below Is a Table Listing Some of the Most Popular BCI Group U1 and U1R Batteries and Their Most Important Features and Specifications:

Model	Battery Type Cell Type	Capacity (Ah) Discharge Characteristics	Weight (lbs/kg) Review
AJC U1-300	Dual Purpose AGM	(18Ah?) 300 CCA	14.08 lbs; 6.4kg -
Casil CA12330	Deep Cycle AGM	33Ah -	19.84 lbs; 9kg -
Chrome U1 Battery	Deep Cycle AGM	35Ah 525 Amps (5 s)	23.5 lbs; 10.7 kg -
Deka 8AMU1R	Starting AGM	- 320 CCA; 45 min RC (25 Amps, down to 10.5V)	25 lbs; 11.3 kg -
Everlast 12350DC-NB	Deep Cycle AGM	35Ah -	23.5 lbs; 10.7 kg -
ExpertPower EP1250	Deep Cycle LiFePO4	50Ah 100 Amps for 10 seconds	13 lbs; 5.9 kg Review
ExpertPower EXP12330	Deep Cycle AGM	33 (10h) 21.09 Amps, 60 minutes, down to 10.5 volts	23.8 lbs; 10.8 kg Review
ExpertPower EXP35-Gel	Deep Cycle Gel	35Ah -	22.82 lbs; 10.35kg -
Interstate Batteries DCM0035	Deep Cycle AGM	35Ah -	22.9 lbs; 10.4 kg -
Mighty Max ML35-12	Deep Cycle AGM	37Ah 330 Amps (5 s); 17.2 Amps, 60 minutes, down to 10.5 volts	23.1 lbs; 10.5 kg Review
Mighty Max ML35-12Gel	Deep Cycle Gel	35Ah 350 Amps (5s); 17.4 Amps, 60 minutes, down to 10.5 volts	23.1 lbs; 10.5 kg -
Mighty Max ML35-12Li	Deep Cycle Lithium	35Ah -	10.0 lbs; 4.53kg -
Mighty Max ML-U1-CCAHR	Dual Purpose AGM	18Ah (10h) 320 CCA; ~20 Amps, 30 min, down to 9.6 volts	14.57 lbs; 6.6 kg -
MotoBatt MBU1-35	Deep Cycle AGM	35Ah -	26 lbs; 11.8 kg -
Neptune T12-35NB	Deep Cycle Gel	35Ah -	23.5 lbs; 10.65 kg -
Nermak Model:1250	Deep Cycle Lithium	50Ah 50A max. cont., 100A <5sec	10.6 lbs; 4.8kg
NPP NP12-35Ah	Deep Cycle AGM	35Ah -	23.1 lbs; 10.5 kg -
Power-Sonic PS-12350	Deep Cycle AGM	35Ah 350 Amps (10 s); 25 Amps, 60 minutes, down to 9 volts	24.7 lbs; 11.2 kg -
PowerSource U1-35	Deep Cycle AGM	35Ah -	25 lbs; 11.3 kg -
PowerStar PS12-35-D	Deep Cycle AGM	35Ah -	23 lbs; 10.4 kg -
Renegade U1-35-WS	Starting AGM	35Ah 400+ CCA	25 lbs; 11.3 kg -
Roypow S1230	Deep Cycle Lithium	30Ah 30Amps max. cont.	8.8 lbs; 4 kg -
SigmasTek SP12-35	Deep Cycle AGM	35Ah -	24.7 lbs; 11.2 kg -
Universal UB12350	Deep Cycle AGM	35Ah 315 CCA; 18 Amps, 60 minutes, down to 10.5 volts	24.4 lbs; 11.1 kg -
VMAXTANKS V35-857	Deep Cycle AGM	35Ah 300 CCA; 75 min RC (25 Amps, down to 10.5V)	25 lbs; 11.3 kg Review
VMAXTANKS VPG12C-50Li	Deep Cycle Lithium	50Ah 150 Amps (3 s), 100 Amps (5 s), 50 Amps Continuously	12 lbs; 5.4 kg -
Weize LFP1235	Deep Cycle AGM	35Ah (10h) 350 Amps (5 s); 20.4 Amps, 60 minutes, down to 10.5 volts	23.2 lbs; 10.5 kg Review
Weize TPLI-1236	Deep Cycle Lithium	36Ah 40A continuously, 100A 3 seconds	8.93 lbs; ~4.04 kg -
Weize U1-200	Starting AGM	24Ah 200 CCA	17 lbs; 7.7 kg Review
Weize U1-300	Starting AGM	28Ah 300 CCA	18.7 lbs; 8.5 kg Review
Weize U1-350	Starting AGM	33Ah 350 CCA	21.5 lbs; 9.75 kg Review

Usage and Capacity

Many of these batteries are labeled for general use, raising another question—are they genuinely multipurpose? Some are marketed as deep-cycle batteries but actually serve as high-performance starting batteries. Typically, U1 batteries have a capacity of around 35 Ah over a 20-hour period.

Structural Features

These batteries are generally AGM (Absorbent Glass Mat):

Spill-proof、Shock-resistant、 Maintenance-free

Their design makes them versatile for various installation positions, except for an inverted one.

Performance Metrics

High-performance lead-acid U1 batteries often have 300-320 CCA (Cold Cranking Amps), with some models claiming over 400 CCA. Standard U1 batteries can deliver 300-350 amps, making them suitable for applications like:

Lawnmowers、Garden tractors

Reserve Capacity

Manufacturers generally do not specify the actual Reserve Capacity (RC). Instead, they provide fixed power and constant current discharge tables to help users predict discharge characteristics.

Ampere Ratings

A well-made U1 battery typically provides around 19-20 amps for 60 minutes. Interestingly, the VMAXTANKS V35-857 stands out by offering 25 amps for 75 minutes.

Weight and Portability

On average, SLA (Sealed Lead Acid) U1 batteries weigh between 23-26 pounds. They come with built-in handles for easier portability.

Practical Experience

Interestingly, in practical settings:

Gardeners and landscapers often rely on consistent amperage.

The durability of these batteries is crucial for equipment reliability.

Lithium-ion U1 Batteries

Weight and Capacity

Lithium-ion U1 batteries are significantly lighter and increase the number of charge/discharge cycles. A notable example is the VMAXTANKS VPG12C-50Li, which has:

Built-in BMS (Battery Management System)、Nominal capacity of 50 Ah、Weight of just 12 pounds

It can continuously supply 50 amps of current. Surprisingly, it features an on/off switch, an LCD screen, and USB charging ports (5V/1A, 2.1A).

Limitations

However, these batteries are not suited for starting applications. They can only provide:

Up to 150 amps for 3 seconds、100 amps for 5 seconds

Voltage and Charging

These batteries operate at voltages up to 16.8V. Thus, it is essential to use a charger suitable for lithium batteries. The VMAXTANKS VPG12C-50Li usually comes with a smart charger, which can prolong the battery life.

Applications

This advanced technology has been embraced in various sectors where weight and efficiency are critical, such as:

Portable power sources、Energy storage systems

While selecting between U1 and U1R batteries, understanding their specific characteristics and real-world performance metrics becomes vital. Practical applications and unique features—whether lead-acid or lithium-ion—determine their suitability for different tasks. A meticulous selection based on these parameters can ensure optimized performance, enhanced reliability, and extended battery life.

U1 Batteries in 24-Volt Systems

The U1 batteries are a popular choice for 24-volt systems. These batteries are often used in pairs connected in series. Why use AGM or Gel-Cell batteries in such configurations? The answer lies in the necessity to use identical models, ideally from the same batch, to ensure consistency. Notably, leading brands provide paired U24 batteries or 36V battery packs composed of three units.

For example, U1 batteries are commonly used to power a 24-volt wheelchair equipped with 2x250 watt motors. This setup demands careful attention to the maximum current load, which is around 21 amperes under full power. Interestingly, practical usage often results in longer operation times because the motors are not constantly running at peak power.

What is the technical reason for using identical batteries? It is essential for maintaining uniform charge and discharge rates. This consistency ensures balanced performance and longevity of the system. Diverse battery models, or even different production batches, can introduce inconsistencies that might lead to premature battery wear or system failures. Field applications have shown that mismatched batteries can cause output fluctuations, thereby reducing overall system reliability.

Additionally, insights from seasoned professionals suggest the importance of regularly inspecting the connections. Ensuring there is no corrosion or loose terminals can further optimize the performance and lifespan of the battery system. Utilizing terminal protectant sprays and conducting periodic maintenance checks can effectively mitigate these issues.

The central takeaway here revolves around the significance of uniformity and regular maintenance in battery systems. Synchronizing each component and maintaining them well can maximize efficiency and significantly extend the operational life of the equipment. This practice proves to be cost-effective over time and is beneficial for ensuring uninterrupted service.

Using U1 Batteries for Kayak Trolling Motors

U1 batteries are commonly used for 12V trolling motors, characterized by a current rating between 20-30 amps—25 amps being a frequent average peak current. One might ponder, how long do U1 batteries sustain such demand? They can deliver 60 amps for nearly 25 minutes, approximately 45 minutes under regular loads, with a few extra minutes for safety. Additionally, lithium batteries offer compelling alternatives. For example, the VMAXTANKS VPG12C-50Li can provide 25 amps for almost two hours. The Weize TPLI-1236, although with a 50Ah capacity, delivers over one hour and twenty minutes and weighs just 25 pounds. Classic choices include:

VMAXTANKS V35-857、ExpertPower EXP12350

Considering this further, how does battery weight impact its practical use in trolling motors for kayaks? Avid anglers often highlight the significance of battery weight, especially for smaller watercraft like kayaks. A heavier battery may provide extended run times but can adversely affect stability and handling. Therefore, balancing battery capacity and weight is crucial for optimal performance and safety.

Technological advancements, particularly in battery chemistry, have greatly improved lithium iron phosphate (LiFePO4) batteries. How do these advancements translate to practical benefits? LiFePO4 batteries, differing from traditional lead-acid ones, offer longer lifespans, quicker recharge times, and higher efficiency, making them increasingly favored by both professional and recreational kayakers. For instance, the VMAXTANKS VPG12C-50Li presents high capacity and lightweight features, ideal for extended fishing trips without frequent replacements.

Reliability under varying environmental conditions is another aspect warranting attention. Seasoned users often recommend ensuring your battery is equipped with protective features such as waterproof casings, thermal management, and vibration resistance when used in marine environments. These features extend battery lifespan and ensure consistent performance under challenging conditions.

On a broader scale, the question arises: how do smart battery management systems enhance the use of these batteries? Modern BMS provide real-time data on battery health, state of charge, and potential issues, facilitating proactive maintenance and informed decision-making. This technological enhancement boosts user confidence while maximizing usability and safety in various scenarios.

In summation, while U1 batteries remain viable for kayak trolling motors, modern lithium alternatives offer significant advantages in weight, efficiency, and longevity. The interplay between battery capacity and stability, combined with environmental considerations and advanced management systems, underscores the necessity for an informed choice to ensure a seamless kayaking experience.

How to Charge U1/U1R Batteries

When connecting the U1/U1R battery to a device's electrical system, the state of the battery charger should ensure that the battery remains fully charged. Is it possible that an incorrect charger could damage the battery? Indeed, it could. Therefore, during bench charging, it is prudent to select an advanced battery charger that monitors the battery's status comprehensively.

Lead Acid Batteries

Lead acid U1/U1R batteries ought to be charged using an advanced AGM charger, one that possesses desulfation mode and deep discharge recovery features. What is the recommended charging current? While some manufacturers suggest using 10+ amps, it is wiser to use approximately 5 amps with an AGM charger to avoid putting undue stress on the battery. Notably, once the charging process completes, the charger should automatically switch to maintenance mode.

Consider a specific model, such as the NOCO Genius 5A smart battery charger:

Supports AGM, lead acid, and lithium batteries、Features deep discharge recovery, crucial for sustaining battery health.

In many practical scenarios, employing a 5A charger for lithium batteries has proven to be sufficient. An important question arises here: why avoid overly powerful chargers? Primarily, because chargers specifically designed for lithium batteries ensure both safety and battery longevity.

Practically speaking, many users have noticed a marked improvement in battery lifespan with these chargers. For example, using a maintenance charger during periods of inactivity has been particularly effective in preventing battery sulfation, a commonly overlooked issue in routine charging practices. This hands-on approach can significantly affect the reliability of your energy storage system.

Moreover, extensive user experiences point out the significance of using chargers that come with diagnostic features. Why are diagnostic features so important? These features help to spot potential issues before they balloon into more significant problems, ultimately saving time and resources. The integration of advanced charging technologies, driven by real-world user experiences, undeniably represents a leap towards achieving superior battery performance and dependability.

U1/U1R Battery Common Questions (FAQ)

What does U1 mean on batteries?

Let's start with a basic but essential question. U1 indicates that the battery belongs to the U1 battery group, a classification used to define specific characteristics such as size and usage.

Are all U1 batteries the same?

U1 batteries can vary slightly in:

Size、Chemical composition、Discharge characteristics、Terminal types

For instance, human experience shows that slight variations in chemical composition can significantly affect the battery's longevity and performance. Are there noticeable differences in discharge characteristics between two seemingly identical batteries? Indeed, there can be, and these differences can have meaningful implications for your device's performance. It might be insightful to delve deeper into how these slight variations can impact battery selection and usage.

What are the dimensions of a U1 deep-cycle battery?

The dimensions of a U1 battery are generally 197 x 132 x 186 mm. Still, it's fascinating to consider how these measurements may slightly differ depending on the specific application and manufacturer's design. Field experience indicates that ensuring the battery fits properly into its designated slot is crucial for optimal performance and safety. Does this raise questions about design compatibility across different manufacturers? It certainly does, emphasizing the importance of verifying dimensions for a proper fit.

What is the difference between U1 and U1R lawn mower batteries?

The primary difference lies in the terminal orientation:

- U1 has a positive terminal on the left

- U1R has a positive terminal on the right

This distinction is fundamental when replacing batteries. Incorrect terminal alignment can lead to improper connections and potential damage. Numerous practical instances have shown that choosing the correct terminal orientation is vital for maintaining functionality and longevity. Can misalignment cause immediate failure? Unfortunately, yes, and it's a risk that needs attention during the replacement process.

What is the maximum CCA (Cold Cranking Amps) rating for a U1 battery?

On average, the CCA for U1/U1R batteries ranges between 300-320 amps

Some models boast over 400 CCA. CCA is a critical metric for evaluating battery performance in cold conditions. Practical applications underscore that a higher CCA rating can provide more reliable starts in colder environments, enhancing the overall efficiency and reliability of the equipment. How does one interpret CCA ratings effectively? Understanding these ratings can significantly impact decision-making for cold weather applications, often a crucial element for outdoor power equipment.
