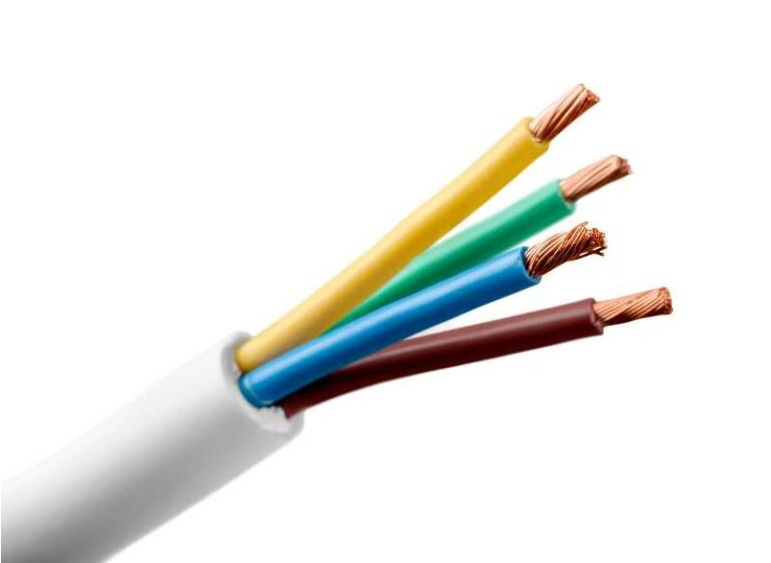

How Many Amps is 4 AWG Good For?

Understanding the ampacity of electrical wires, as dictated by the National Electrical Code (NEC), is important for safe & efficient electrical installations. Have you ever wondered why the ampacity ratings for different wires vary so significantly? It's fascinating to realize that these variations hinge on the insulation type and temperature rating.

Catalog

For a 4 AWG copper wire, the ampacity can change dramatically based on these factors:

- With THHN/THWN-2 insulation at 75 °C, the ampacity is 85 amps.

- The same rating of 85 amps applies to RHW, XHHW, and USE copper conductors.

- When the insulation type is XHHW-2, USE, RHW-2, and THHN/THWN-2 and the temperature rating is 90 °C, the ampacity increases to 95 amps.

When considering 4 AWG aluminum wire, the ratings are different:

- RHW, THHN, THWN, and USE insulation at 75 °C offer an ampacity of 65 amps.

- For RHW-2, THHW, THWN-2, and USE-2 insulation at 90 °C, the ampacity increases to 75 amps.

- TW and UF conductors at 60 °C provide an ampacity of 55 amps.

So why is there such a disparity between copper & aluminum wires? The difference stems from the materials' varying conductivities and thermal properties. This knowledge isn't just academic; it's required for ensuring system safety & operational efficiency. Overlooking these considerations could lead to overheating and subsequent equipment failure.

What is 4 AWG Wire Used For?

4 AWG wire possesses a medium thickness & accommodates a significant electrical power flow. It is used in situations where a balance between carrying enough power and being flexible is important. Below is a detailed examination of its prevalent applications.

Service Entrances

Capable of managing currents between 85 and 100 amps, 4 AWG wire is instrumental in channeling power from the electrical grid into residential & commercial structures. This type of wiring is also employed in powering appliances and equipment that demand consistent power distribution. When considering power reliability, what specific factors are of utmost importance in service entrances? Ensuring uninterrupted energy flow to critical sections of buildings ranks highly.

Subpanels

When connecting subpanels, 4 AWG wire plays a vital role in distributing power across diverse building sectors, including garages, workshops, and home offices. For instance:

- A garage subpanel might facilitate the functioning of power tools and electric vehicle charging stations.

- A workshop subpanel could be vital for running heavy machinery and lighting.

The seamless integration of subpanels using appropriate wire gauges directly impacts the efficiency and safety of electrical systems. Does the type of subpanel influence the wire gauge required? Indeed, the specific usage of the subpanel determines the proper wire gauge to ensure safety and efficiency.

Welders

4 AWG wire is indispensable in transmitting power from electrical sources to welders across various settings, including:

- Shipyards

- Construction sites

- Automotive repair shops

- Pipeline welding

In these settings, the wire's strength and ability to carry large amounts of electricity are essential for safe and dependable welding. How does wire choice impact welding quality? Optimal wire selection ensures consistent power supply, reducing the chances of welding defects.

Large Appliances

The connections of large appliances, such as electric stoves, ovens, clothes dryers, & water heaters, to the electrical system often utilize 4 AWG wire:

- Ensuring these appliances receive stable and sufficient power is vital for their optimal performance and longevity.

- Correct wire selection diminishes the risk of electrical failures and enhances appliance effectiveness.

What happens if an incorrect wire gauge is used? Inadequate wire gauge may lead to overheating, potentially causing appliance damage or electrical fires.

HVAC Systems

HVAC components, including air conditioning units & heating systems, are connected using 4 AWG wire:

- Ensures efficient operation.

- Facilitates comfort and air quality maintenance in various environments.

- Supports energy conservation and cost savings.

Why is proper wiring essential in HVAC systems? Reliable wiring not only maintains system functionality but also enhances overall energy efficiency, reducing operational costs.

Backup Generators

4 AWG wire is used in linking backup generators to a building's main electrical system. This connection underpins the supply of electricity to essential devices such as:

- Refrigerators

- Sump pumps

- Heating systems

- Lighting during power outages

Ensuring that backup generators are connected with appropriate wiring ensures robust performance during emergencies, when dependency on these systems is at its peak. What are the risks of using subpar wiring with backup generators? Inadequate wiring may fail during critical outages, jeopardizing emergency power needs.

Battery Banks

In renewable energy setups, such as residential solar systems or off-grid cabins, 4 AWG wire is used for connecting batteries within battery banks. This connection facilitates:

- Storage and utilization of solar energy.

- Meeting energy demands as needed.

- Supporting systems during emergencies.

Effective wiring in these systems enhances energy efficiency and reliability. How can improper wiring affect renewable energy systems? Poor wiring can lead to significant energy losses and compromise system reliability.

By thoroughly understanding and correctly applying the uses of 4 AWG wire, one can ensure efficient and safe electrical operations across various contexts. This awareness not only optimizes system performance but also mitigates potential risks associated with improper electrical installations.

Common Types of 4 AWG Wires

Several 4 AWG wire types are available. Here's a review of some of the most common:

THHN/THWN - This thermoplastic insulation wire is known for its heat and moisture resistance. Why does this matter in HVAC systems and power distribution? The insulation’s robustness makes it a popular choice in HVAC systems, lighting, emergency power systems, and power distribution. Its versatility enable it to be utilized effectively in both commercial and residential projects, ensuring high standards of performance. Could this be the reason why it’s so commonly selected for diverse applications? It certainly seems so.

XHHW/XHHW-2 - Extensively used for lights, HVAC systems, motors, and industrial machinery, this wire type is used in applications such as pump stations, emergency systems, data centers, and control panels. The cross-linked polyethylene insulation provides superior protection against severe weather conditions and chemical exposure. How does this benefit critical infrastructure? It highlights the wire's significance in both industrial and infrastructure settings.

SER/SEU - Primarily designed for residential electrical services, these wires are used in powering apartments, commercial buildings, outdoor structures, agricultural facilities, temporary setups at construction sites, subpanels, and mobile homes. The flexibility and ease of installation offered by the aluminum or copper conductors within these cables are beneficial for large-scale wiring projects. Can such flexibility make installation more efficient? Indeed, it simplifies complex wiring tasks.

USE (Underground Service Entrance) Cable - Engineered to power residential services and outdoor lighting, this wire type also supports detached garages, workshops, in-ground pools, spas, and garden sheds. Why is durable insulation vital here? The insulation is tailored to endure underground environments, thus, ensure consistent performance and longevity.

MTW - Employed in machine tools, motor connections, industrial automation systems, packaging machinery, and material handling equipment, this wire is utilized to modern manufacturing processes. Its flexibility eases routing through tight spaces, and its oil and water-resistant properties make it suitable for harsh industrial environments. How does such versatility impact industrial efficiency? It allows for reliable & optimal functioning within challenging settings.

Welding Cables - Commonly seen in welding, automotive work, large equipment repair, construction, and pipeline projects. The flexible copper strands and durable rubber insulation of welding cables facilitate smooth energy transmission. Is this the reason it’s essential for demanding tasks that require high current capacity and extreme flexibility? Absolutely, it stands as a standard practice in heavy-duty industrial settings.

Marine Cable - Specifically designed for use on boats and ships, 4 AWG wire distributes power to navigation lights, HVAC systems, and charging systems. Its capacity to withstand harsh weather conditions ensures reliable electrical connections. Why is this used for maritime safety? It guarantee operational efficiency in real-world maritime practices.

In understanding the various types of 4 AWG wires, consider the specific requirements of your application. Each wire type holds unique properties and advantages, tailored to meet particular electrical needs. Employing the right type of wire significantly influences the overall efficiency, safety, and longevity of electrical installations—a principle well-supported by extensive industry experience.
