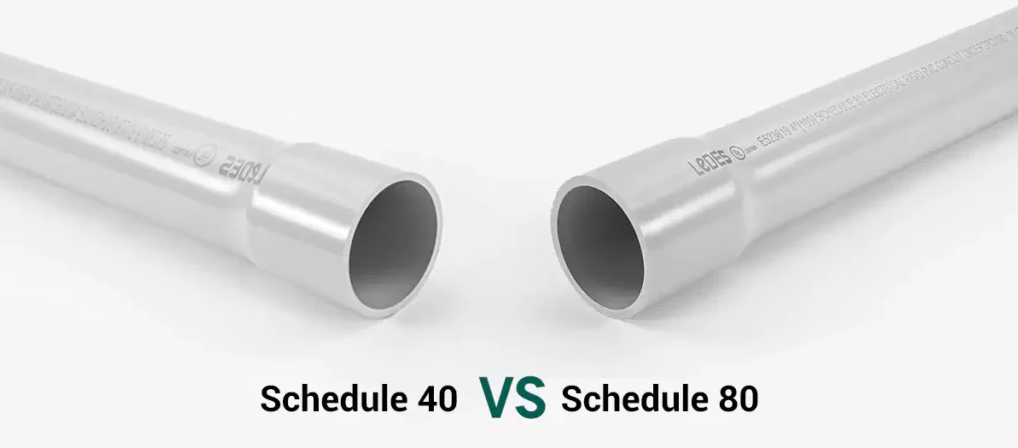

PVC Schedule 40 vs. Schedule 80: Which Conduit is Best for Your Project?

One might wonder, should you use Schedule 40 or Schedule 80 conduit to protect electrical wiring in your home? Commonly, the preferred choice tends to be PVC Schedule 40. But why is that the case? Let's delve into the specifics to understand the reasoning behind this selection.

Catalog

To begin with, PVC Schedule 40 conduit is widely chosen due to its satisfactory balance between durability and cost-effectiveness. It is suitable for most residential electrical projects, offering ample protection for wiring under standard conditions. However, let's not overlook potential exceptions. Could there be scenarios where Schedule 80 might be more appropriate?

In instances where the electrical wiring is exposed to higher mechanical stress or harsher environmental conditions, such as increased physical impact or weight load, PVC Schedule 80 might be a better alternative. This heavier-walled conduit provides enhanced durability and resistance, ensuring added safety for more demanding applications.

So, what makes PVC conduit advantageous in general? PVC conduits are non-corrosive, lightweight, and relatively easy to install, making them a practical choice for many homeowners. Given these attributes, it's clear why PVC remains a popular material for electrical conduits, both in Schedule 40 and Schedule 80 forms.

As we explore the particulars of electrical conduit selection, it's evident that choosing the right type hinges on the specific demands of your project. Thus, while PVC Schedule 40 suffices for typical household installations, assessing the unique conditions of each installation is crucial.

PVC Schedule 40 and PVC Schedule 80: Conduits or Pipes?

Both PVC Schedule 40 and PVC Schedule 80 can serve as conduits or pipes. However, a critical examination reveals some nuanced differences in their applications, especially in the context of electrical systems. Why is it that professionals might prefer one over the other for electrical conduits?

Application as Electrical Conduits

When considering electrical conduits, the primary function is to safeguard electrical wires from external elements that could compromise their performance or safety. This includes not only protecting against physical damage but also shielding from moisture and other environmental factors. Can the choice between Schedule 40 and Schedule 80 impact mechanical protection and longevity?

Mechanical Protection and Longevity

Mechanical protection and durability are crucial when choosing electrical conduits. Schedule 40 is often sufficient for residential applications with lower risk environments, while Schedule 80, with thicker walls, offers enhanced protection in more demanding settings. The thicker walls of Schedule 80 could be particularly advantageous in industrial or outdoor environments where physical impact risks are higher.

Industry experience shows that choosing the right conduit can greatly impact the safety and maintenance of electrical systems. A misstep in this selection not only compromises safety but could lead to increased maintenance costs and complexity.

By diving deeper into the specifics, one might wonder: How do the properties of these conduits interact with various insulation types used in wiring? Understanding these interactions further underscores the importance of a well-informed conduit choice.

Applications of PVC Schedule 40 and PVC Schedule 80

The term 'Schedule' refers to the standard measurement of conduit wall thickness, set by ASTM. (American Society for Testing and Materials). Did you ever wonder why there are specific standards like ASTM for conduits? It's because precise wall thickness ensures consistent performance across different applications.

Schedule 40 conduits possess a wall thickness of 0.133 inches, whereas the more robust Schedule 80 conduits feature a wall thickness of 0.179 inches.

Applications of Schedule 40 Conduits

Schedule 40 conduits are typically white and engineered for low-stress environments. They comply with all PVC conduit applications specified in Section 352 of the National Electric Code (NEC), which include:

- Concealment within walls, floors, or ceilings

- Direct burial

- Embedding in concrete

- Usage in corrosive zones where locally permitted

- Wet locations when paired with corrosion-resistant fittings

- Dry and damp environments

- Underground applications

- Supporting other nonmetallic conduits

- Ambient temperatures up to or below 50°C

- Exposed indoor work not prone to physical damage

Based on personal experience, these conduits seem to adapt quietly and fit perfectly into different residential setups. Is it the versatility that truly sets Schedule 40 apart for residential settings, or is it the easier installation process?

Applications and Advantages of Schedule 80 Conduits

Stepping up to Schedule 80 conduits unveils significantly thicker and more resilient gray pipes. Designed to offer enhanced protection and superior UV resistance, are these attributes enough to warrant the approximately 20%-50% higher cost? Their increased durability makes them the preferred choice for environments susceptible to physical damage, particularly in industrial contexts.

- Greater strength and resistance

- Enhanced protection against physical damage

- Superior UV resistance

- Excellent flexibility in extreme weather conditions

Ultimately, in environments where hazards like physical damage are prevalent, PVC Schedule 80 proves to be a wise selection. The extra robustness may not seem necessary for most residential purposes, but it becomes invaluable in industrial settings, ensuring the longevity and safety of electrical installations.

Comparative Perspective

PVC Schedule 40 is predominantly suitable for residential and light commercial settings where the probability of physical harm is minimal. This conduit type effectively serves in concealed and benign applications, performing reliably in everyday installations without the necessity for excessive durability.

Conversely, in industrial settings where the hazards of physical damage are heightened, PVC Schedule 80 provides a prudent solution. This conduit offers greater strength and resistance, which is crucial in safeguarding infrastructure in more demanding environments.

Could it be argued that Schedule 80, while appearing excessive for residential, is an investment for the future, potentially reducing replacement costs due to wear and tear?

Reflecting on practical experiences, choosing the appropriate schedule conduit can significantly influence installation longevity and safety. For instance, installations in regions prone to extreme weather conditions or mechanical stress benefit immensely from the heightened durability of Schedule 80 conduits.

In conclusion, while PVC Schedule 40 works well for typical residential and commercial uses, PVC Schedule 80 is a smart choice for high-risk industrial settings. By assessing the specific needs of each situation, you can choose the right conduit, balancing affordability with dependable safety.

Cables Utilized with PVC Schedule 40 and PVC Schedule 80

For PVC Schedule 40

Nonmetallic Sheathed Cable (NM Cable)

Frequently utilized in residential dry, indoor conditions, NM cables are often encased in Schedule 40 conduits for additional protection. This method not only improves protection but also makes cable management easier, extending the lifespan of the wiring system. Is there a risk of overheating when encasing NM cables in these conduits? The answer is no; the conduits are designed to accommodate such conditions without compromising performance. This practice underscores a thoughtful approach to maintaining both functionality and safety.

THHN/THWN Wire

These insulated wires are highly adaptable, frequently routed through Schedule 40 conduits. THHN wires excel in high-temperature, dry environments, maintaining stable performance even in elevated temperatures. Why are THWN wires more favored in wet conditions? They are engineered to thrive in moist environments, making them ideal for areas exposed to water. Utilizing these wires with Schedule 40 conduits offers enhanced fire-resistance and ease of maintenance, traits highly valued in various residential and commercial applications.

Low-voltage Cables

Commonly used for telephone, internet, TV, and security systems, deploying low-voltage cables within Schedule 40 conduits ensures necessary physical protection. This measure is crucial for maintaining signal integrity and shielding the cables from physical damage, ensuring uninterrupted service. Could this integration potentially interfere with signal quality? On the contrary, it preserves signal strength while ensuring protection, thus becoming standard in both residential and commercial settings.

For PVC Schedule 80

THHN/THWN Wire

These wires are particularly well-suited to the more robust Schedule 80 conduits. The increased wall thickness of Schedule 80 provides superior protection against physical damage and environmental stressors, making it an excellent choice for more demanding applications. A question arises: do these conduits significantly impact the overall durability of electrical systems? Yes, their robust nature markedly enhances the system's resilience against potential hazards.

XHHW Wire

Known for its higher durability and impressive temperature resistance, XHHW wire is especially favored in industrial environments. Combining Schedule 80 conduits with XHHW wire enhances the system’s overall resilience, vital for operations where high-performance and safety are paramount. Why is this combination particularly critical? It ensures reliable insulating properties and the ability to withstand harsh conditions, indispensable in industrial installations where performance cannot be compromised.

Control/Instrumentation Cables

Extensively used in industrial applications, these cables greatly benefit from the robust protection offered by Schedule 80 conduits. The increased mechanical protection and resistance to environmental factors such as chemicals and extreme temperatures are pivotal in ensuring uninterrupted operation and long-term reliability. Could these features translate to cost savings in the long run? Absolutely, the initial investment in superior materials pays off through reduced downtime and maintenance costs, reflecting best practices across various industries where system integrity and safety are critical.

Integrating practical experiences and industry practices into the use of PVC Schedule 40 and Schedule 80 conduits with different types of cables showcases the value of selecting the appropriate materials for specific applications. This ensures infrastructure compliance with safety standards and long-term efficiency and durability. Practical experience demonstrate that preventive measures in cable management, such as using suitable conduits, significantly bolster the reliability and safety of electrical systems.
