Transistor Types and Testing Techniques

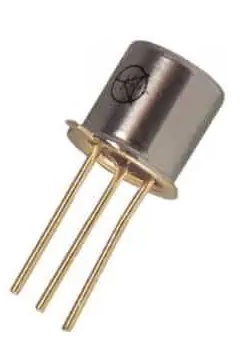

Transistors are semiconductor devices that play a major role in modern electronics. Found in nearly all electronic circuits, from smartphones to computers, transistors are responsible for amplifying signals and acting as electronically controlled switches. Their fast response time and high accuracy make them indispensable in a wide range of applications, including signal modulation, voltage regulation, and amplification. In this article, we'll explore the different types of transistors, their functions, and how to test them effectively.

Catalog

Methods of Classifying Transistors

Transistors are a cornerstone of contemporary electronics, characterized by an array of semiconductor types, including diodes, bipolar junction transistors (BJT), field-effect transistors (FET), and thyristors. Among these, three-terminal transistors such as BJTs and FETs carry significant importance in various electronic operations. A bipolar transistor integrates an emitter, base, and collector made from both N-type and P-type semiconductors, facilitating current amplification. In contrast, the field-effect transistor comprises a source, gate, and drain structure, which empowers it to regulate current via an electric field. The categorization of transistors embraces several detailed classifications:

Material

The primary materials encompass silicon and germanium, with distinctions made between NPN and PNP types based on their electrical polarity. This differentiation is important for assessing their effectiveness in particular applications.Transistors are typically made from silicon or germanium. These materials determine the type of transistor, such as NPN or PNP. Silicon transistors are more common due to their stability at higher temperatures, while germanium transistors are known for their better performance at lower voltages.

Manufacturing Process

Various methods and planar techniques, are employed, each contributing to the transistors' performance characteristics and efficiency. Transistors are also categorized by their manufacturing techniques. These include diffuse-type, alloy-type, and planar-type transistors. Each method impacts the transistor's characteristics, such as its durability and power efficiency.

Current Capacity

Based on the amount of current they can handle, transistors are divided into small power, medium power, and high power categories. Higher power transistors are used in applications like power regulation and audio amplification. Transistors are classified within a spectrum of power ranges, including small, medium, and high-power varieties. This classification directly influences their use in circuit designs, especially in demanding environments where dependability is important.

Operating Frequency

The operational spectrum of transistors extends from low-frequency to ultra-high-frequency ranges, facilitating their use in specific applications like radio frequency communication and digital signal processing. Depending on the frequency at which they operate, transistors are classified into low-frequency, high-frequency, and ultra-high-frequency categories. For example, high-frequency transistors are commonly found in RF amplifiers and microwave communication systems.

Package Structure

Differences are important implications for thermal management and integration within compact electronic systems. The way a transistor is packaged also affects its performance and use cases. Transistors can come in metal can, plastic, glass, ceramic, or surface-mount packages, each suited to different environmental conditions.

Representative Transistor Types

A semiconductor transistor serves as a building block in electronic devices, characterized by its two PN junctions and three external electrodes. Its primary classifications encompass bipolar junction transistors (BJTs) and field-effect transistors (FETs), each distinguished by unique properties that lend themselves to various uses.

Bipolar Junction Transistors (BJT)

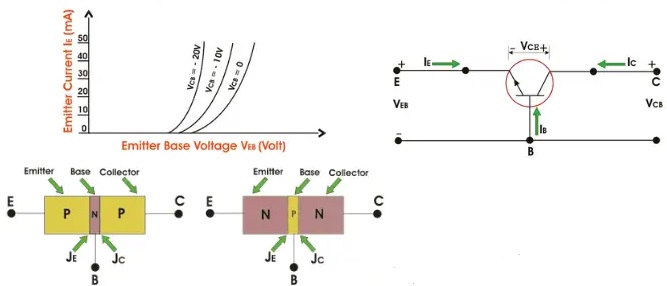

A BJT is a three-terminal device made from two semiconductor materials, forming two junctions: one at the base-emitter and one at the base-collector. The two primary configurations are NPN and PNP. In operation, BJTs rely on the movement of both electrons and holes, making them "bipolar" devices. Their main function is to amplify current, and they are widely used in applications requiring high gain, such as audio amplifiers.

The operation of BJTs is nuanced by current amplification, predominantly involving the emitter current flowing into the collector. Specific conditions, such as a high impurity concentration in the emitter, serve to elevate conductivity significantly. Proper biasing of the junctions is also essential to enable effective current flow. Knowledge gained from diverse applications indicates that thermal management warrants significant attention, particularly in high-power contexts. Efficient heat dissipation emerges as pivotal for enhancing the operational lifespan and reliability of these integral devices.

Field-Effect Transistors (FET)

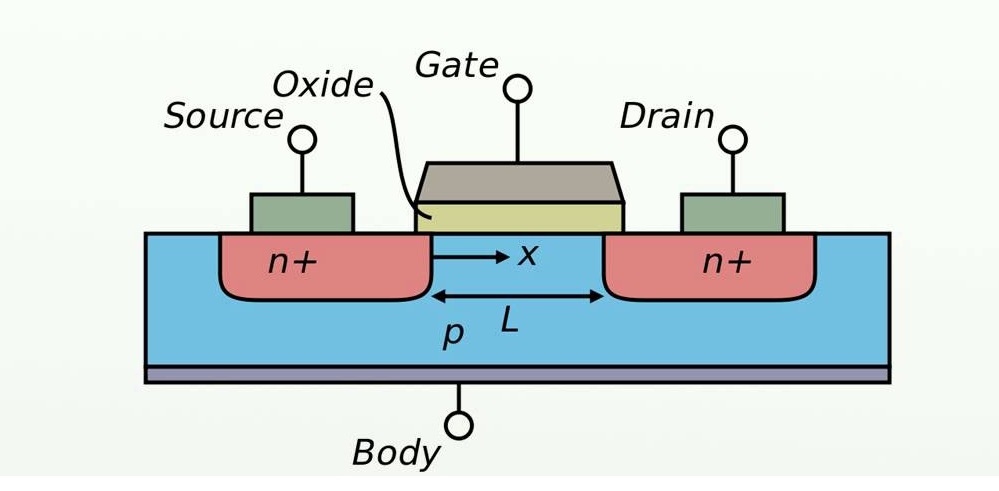

FETs control the flow of current using an electric field. Unlike BJTs, FETs only use one type of carrier (either electrons or holes), making them "unipolar." FETs are known for their high input impedance, low power consumption, and excellent thermal stability, making them ideal for use in high-frequency applications. Field-effect transistors harness the principles of electric fields within semiconductors for current control. They primarily take on two forms: Junction FET (JFET) and Metal-Oxide Semiconductor FET (MOSFET).

Current modulation within these transistors results from electric field manipulation, showcasing high input impedance and low noise levels. Their power-efficient nature makes FETs especially suitable for both amplification and digital circuitry. Silicon-based MOSFETs and GaAs-based MESFETs have established roles in commercial and industrial sectors. Experience from contemporary electronics underlines the need for a thorough grasp of switching speeds and threshold voltages during the design process, as these elements greatly influence circuit performance and compatibility with surrounding components.

Other Notable Transistor Types

• Giant Transistors (GTR): Designed to manage high voltage and current, GTRs excel in applications demanding substantial power handling capabilities. Having a deep understanding of electromagnetic compatibility and the environmental factors shaping their performance becomes an integral part of their effective use.

• Phototransistors: These specialized devices convert light into current and may exist as either bipolar or field-effect types. Their utility spans light detection and optical communications, with factors such as response times and gain playing pivotal roles in selecting the right phototransistor for specific light intensity applications.

• Static Induction Transistors (SIT): Recognized for exceptional power capabilities, SITs exhibit unique on/off characteristics, yet their complexity constrains broader adoption. Insights from telecommunications highlight the necessity of expertise in signal integrity and noise reduction to tackle challenges related to SIT deployment effectively.

• Single-Electron Transistors (SET): Operating with a mere few electrons, SETs present groundbreaking possibilities for low-power applications and integrated circuitry. Ongoing research underscores how advances in SET technology stand to transform microelectronics. Mastery of quantum phenomena is essential to fully unlock the potential of SETs in real-world applications, facilitating strides in power management and computing efficiency.

Testing Transistors

Transistors hold a place in contemporary electronic circuitry, integrating components such as crystal diodes, crystal transistors, thyristors, and field-effect transistors. Mastering effective methods for testing these elements becomes important for the preservation of circuit functionality and overall performance. Below, we delve into different techniques for evaluating crystal diodes and transistors, enriched by the experienced perspectives.

Testing Crystal Diodes

Understanding whether a diode is composed of silicon or germanium is required for accurately interpreting its behavior within a circuit. The use of a multimeter for measuring forward resistance offers clear insights. Generally, germanium diodes reveal a forward voltage drop of approximately 0.1-0.3V, while silicon diodes tend to show a higher range, between 0.6-0.7V. In some terms, it's imperative to assess both forward and reverse resistances. Noteworthy discrepancies in these readings do more than signal functionality; they indicate the diode's capacity to effectively rectify current. Testing the diode in both directions and confirming substantial resistance in one direction acts as a safeguard against shorted or open states. Such careful examination aids in avoiding common missteps that could arise from misidentifying or misusing components in diverse circuits.

Testing Crystal Transistors

Assessing a transistor's amplification potential necessitates a deliberate and careful strategy to ensure precision in testing. Begin by configuring the multimeter to R × 100 or R × 1K, ensuring the leads are appropriately connected. A distinct reduction in resistance upon integrating a resistor serves as a robust indicator of the transistor's amplification prowess.

Comprehending the terminal configurations is required by gauging the resistances between terminal pairs, one can effectively pinpoint the base terminal. Its distinguishing feature lies in possessing two lower resistances in contrast to the others. Subsequently, measuring emitter and collector resistances allows for a clear classification into either NPN or PNP types. This methodology not only aids in recognizing different transistor types but also reinforces that each component functions within its designated role, a principle for effective circuit design.

Testing of Darlington Transistors

Darlington transistors are high-gain semiconductor devices combining two transistors in a single package to amplify signals. Testing these transistors involves verifying their gain, junction integrity, and overall functionality using a multimeter or dedicated transistor tester to ensure reliable performance in circuits

Standard Darlington Transistors

In standard Darlington transistors, the interplay of multiple transistor junctions significantly boosts their ability to amplify current. This characteristic makes them useful across a variety of electronic applications. When testing these components, practitioners must carefully measure both forward and reverse resistance to ensure good performance. A well-functioning Darlington transistor typically shows forward resistance readings between 3-10kΩ between the collector and the base, alongside infinite reverse resistance. These resistance values act as key reference points for evaluating the transistor’s operational effectiveness.

In cases where measurements fall outside these typical parameters, it may indicate potential issues such as junction breakdown or incorrect biasing. Many practitioners have recounted instances where meticulous testing unearthed minor irregularities that, if left unresolved, could have resulted in circuit failures.

High-Power Darlington Transistors

High-power Darlington transistors are engineered to manage significant currents and voltages, often featuring advanced protection circuits designed to defend against operational hazards. This added complexity calls for specifically tailored testing methodologies to accurately assess their performance.

One frequent challenge encountered involves the relationship between the protective features of the transistor and the measurement instruments used. If not adequately managed, this interaction can produce erroneous results. Exmploy specialized tools and techniques to navigate these challenges effectively.

Moreover, an examination of these high-power variants illustrates the essential influence of sound design practices on the lifespan of components. To proactively pinpoint potential failure points, employing testing methods such as thermographic inspections to monitor heat generation during operation is invaluable. The inclusion of such practices in standard testing processes aligns with the overarching goal of enhancing component reliability, and also demonstrates a more profound comprehension of the intricate ecosystem surrounding electrical devices. Consequently, ongoing learning from both successful outcomes and difficulties faced in the field is vital for honing advanced testing skills.

Conclusion

A comprehensive look at testing methods for diodes and transistors is included, shedding light on not only performance evaluation but also the task of determining electrode configurations. This foundational knowledge is valuable when it comes to troubleshooting electronic devices.

Frequently Asked Questions [FAQ]

1. How do we test different types of transistors?

To test a transistor, connect the base terminal to the positive terminal (typically marked red) of the multimeter. Connect the negative or common terminal (usually marked black) to the collector and check the resistance. For a healthy transistor, the reading should indicate an open circuit (for a PNP transistor, expect some deflection).

2. What are the various kinds of transistors?

Types of Transistors:

Bipolar Junction Transistor (BJT)

Diffusion Transistor

Avalanche Transistor

Schottky Transistor

Darlington Transistor

Heterojunction Bipolar Transistor (HBT)

Field-Effect Transistor (FET)

Junction FET Transistor

3. What are the two primary categories of transistors?

Transistors generally fall into two primary categories based on their design: Bipolar Junction Transistors (BJT) and Field-Effect Transistors (FET).

4. How do you test a transistor within a circuit?

Power off the circuit before testing.

Identify the base, collector, and emitter pins of the transistor.

Set your digital multimeter to the diode function if available, or to the ohmmeter setting if not.

Measure the resistance between the base and collector in both directions.

Measure the resistance between the base and emitter in both directions.

5. How do transistors function?

A transistor operates by allowing electrons and holes to move across the junctions between n-type and p-type silicon. It amplifies a small input current into a larger output current, functioning as an amplifier, while simultaneously acting as a switch to control electrical signals.
